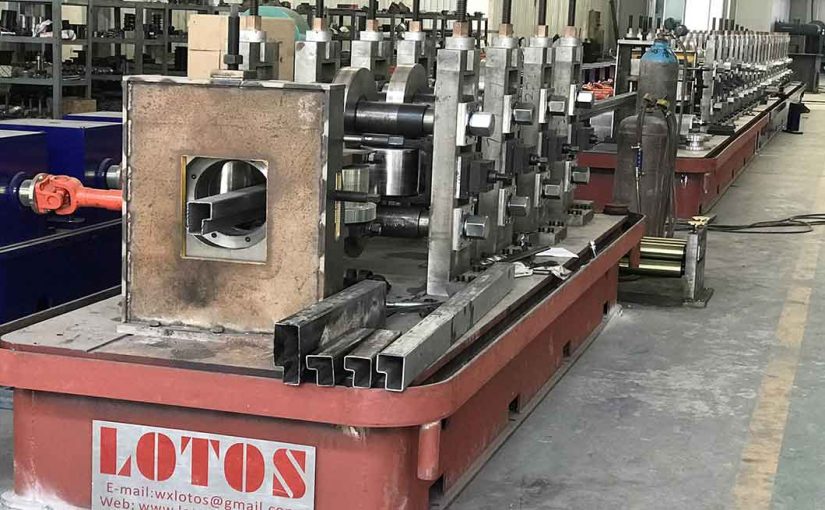

Rack Upright Roll Forming Machine
A rack upright roll forming machine is designed to produce the uprights or columns for Warehouse Pallet Rack System. Different rack uprights vary in size and styles depending on the load capacity and style.
In a basic roll forming machine, the metal is fed into a series of stations where it is bended to the desired shape. Each set of fixed rollers bends the metal a little more than the previous station, ensuring the correct cross-sectional configuration of the piece.
High-speed
Rack uprights are frames used to make warehouse pallet racks. These are made of metal and can be purchased in a variety of different sizes and styles, depending on the customer’s needs. They can be designed to work with compatible beams and are a quick and easy way to build and install storage systems for your facility.
Uprights are an essential part of a rack system and allow you to store palletized loads or large containers in an organized manner, with multiple levels of shelving. There are a number of different types of uprights that can be used, including L-shape and C-shape frames, and the style depends on the load capacity you need.
The high-speed rack upright roll forming machine can be used to produce these frames, which are manufactured from a variety of materials, including aluminum and steel. The forming process is simple, with the machine uncoiling the metal, punching holes and slots, and rolling it into a sturdy frame that can support pallets or heavy containers.
This type of equipment is an excellent choice for those looking to increase productivity and cut down on the cost of production. The machine can be easily operated, and its control systems ensure that it works safely and efficiently.
It is also a great choice for those who need to package the product for shipping, as it can be fully automated with an orbital stretch wrapper (Heartland manufactures these machines and sells them to a wide range of companies). This allows for quick packaging without the need for additional labor, which saves money on the overall cost of the equipment.
Upright racks are a critical part of the pallet racking process, and can be produced with ease using the high-speed rack upright roll forming machine. The equipment can produce uprights up to 2.5mm thick and is designed with continuous servo punching technology to ensure that it produces accurate frames that will last for years to come.
The machine is an essential piece of equipment for the manufacturing of racking frames and is available in a wide array of sizes, thicknesses, and styles. It can be used to produce both light and heavy-duty pallet racks, and is a valuable asset for any racking manufacturer.
Precise
The precision rack upright roll forming machine uses a set of precisely placed rollers to perform incremental bending and gradually shape a continuous strip of metal. The process is extremely accurate and produces consistent parts with tight tolerances.
The machines can handle a wide range of thicknesses and shapes of metals. They are ideal for a variety of applications, including automotive, medical, aerospace and construction.
There are a few different types of roll forming machines, and they all come with their own unique features and capabilities. If you’re a first-time user of this type of machinery, it’s important to know how the machine works and what it can handle before you buy one.
Most commonly, a strip of metal is fed through the rollers, which progressively shape it to the desired flower pattern. The metal is then cut to rack upright roll forming machine length and discharged to a run-out table. This eliminates the need for secondary operations, resulting in a more efficient process.
Another characteristic of this machine is its ability to assemble multiple racks, each with a specific profile. The racks are connected to a synchronized sliding mechanism, and the sliding movement is controlled by a common drive and linkage. This is an important feature because it makes it easier to produce parts with a wide range of widths and heights.
In addition, the synchronized sliding mechanism can be set to a predetermined position by a PLC, and the slide linkage can also be programmed to return the slides at certain times of the forming cycle. This prevents the need to repeatedly adjust the positioning of the spline-forming racks.
This also makes it possible to produce large parts with minimal human intervention. As a result, the precision rack upright roll forming machine reduces labor costs and energy expenses.
It also has a high degree of safety, making it suitable for manufacturing heavy products. It can handle materials with a maximum weight of 2,500 pounds and is backed by a long warranty.
Another notable feature of this machine is that it can be used for spline-forming and punching. Spline forming is an essential process in many industries, and it can be applied to both ferrous and non-ferrous metals. This enables the machine to produce a wide range of shaped components with sharp contours and smooth finishes.
Energy-efficient
Rack upright roll forming machine is the equipment used to manufacture storage shelf column for warehouse pallet racking system. Various styles and sizes of Uprights are available to meet the needs of different load capacities and warehouse layouts. During production, holes and slots are punched to accept the load beams that can be attached to the Uprights in a way that they can be easily mounted onto the Uprights in a racking system.
The Upright Racks are made of steel sheet material that is unfolded, levelled, perforated, continuously roll formed and cut to length. The material is processed by CNC machine tools to ensure the accuracy of the rollers, and thus, the accuracy of the racks. Our cut frames and punch frame are stress-relieved, so that they are not deformed during the long-term production process, making the final racks smooth and durable.
Our storage upright rack roll forming machine is fully automatic, and the entire production line is controlled by PLC to achieve efficient production. The line is composed of a manual decoiler and leveling system, a mechanical press machine with punch die and roll forming machine part, an output table, hydraulic pump station and an electrical control cabinet.
This equipment is able to produce shelves in a variety of shapes and sizes, from light to heavy. The shelving is made of cold-roll steel, which has a large carrying capacity and excellent stability.
The racking shelves are used for storing pallet goods, and they have many characteristics that make them an ideal choice for modern warehouses. They are easy to assemble, and they can be positioned in a wide variety of locations.
LOTOSFORMING is one of the best manufacturers in China, and our company offers a variety of storage rack making machines for sale. Our rack upright roll forming machine can be customized to meet your requirements, and we are happy to help you with the production of all kinds of shelves.
This storage rack forming machine is designed for producing L-shape, C-shape and special C-shape shelf beams in various sizes and thickness. The width of the shelf beam can be adjusted according to the customer’s requirements, and the length of the beam can also be changed.
Customized
A customized rack upright roll forming machine is a special type of equipment used to produce storage pallet racking. It can be a great help for warehouses that need to organize their products in a logical way.
This machine is manufactured by using the latest technology and high tensile steel. This allows it to reduce scrap, making it an ideal option for any warehouse.
It is a high-efficiency production line, easy to rack upright roll forming machine operate, and safe to use. It can be used to make shelves for light, medium, and heavy storage. It is also a great choice for a variety of businesses.
The amount of work that a roll form machine can do is determined by a number of factors, including the material thickness, metal alloy, part shape, and size. This is why it’s important to partner with a company that can meet your needs.
In addition, the dimensional tolerances of your product will vary based on the exact materials you’re using. If the components are made from thicker metal, they’ll need to have more bends and angles to prevent bending and springback during the roll forming process.
Another factor that can affect a roll form machine’s ability to run a component is its final height. If it gets too tall, the vertical shaft spacing won’t be big enough to hold the component as it is shaped.
To minimize the need for a large vertical shaft, a roll form machine can be equipped with flying die cut-off stations. This helps cut the metal to a precise length, without having to manually move it.
This can help avoid the bending and deformation that often happens when cutting metal with a knife. It can also minimize the risk of damage and waste.
A customized rack upright roll forming machine can be designed to suit your specific requirements and budget. The basic machine includes an entry section, station rollers, a forming station, and a cut off station.
The forming station includes punching, leveling, and bending sections. The punching section includes a hydraulic punch with servo feeding and a post-cutting device. The leveling section is comprised of a pinch roller and a leveling roller.
